The Vox 460 Head - An "Under the Hood" Look at the Upper Chassis
Power Supply and Power Amp Circuits (1966)

© 1996 - 2023 The Vox Showroom, all rights reserved. No use on online auctions, eBay or Reverb.

Let's take a look at the power supply and power amp stages of the Vox UL460 and UL760 as detailed on JMI Vox schematic OS/115, dated March 3, 1966.

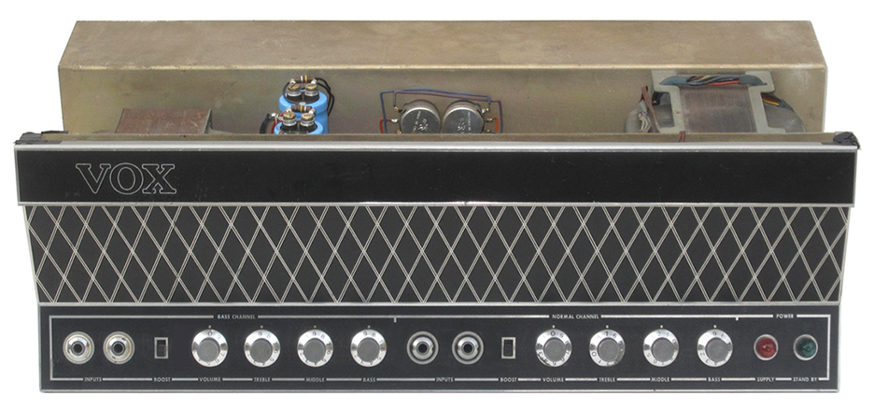

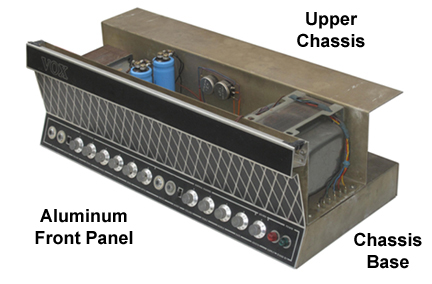

The UL460 and the UL760 chassis were comprised of three parts. The chassis base was a rectangular steel box with an open bottom. It enclosed the preamp circuitry. The steel upper chassis was riveted to the base. It was formed to create an electronically shielded "valley" to mount the transformers and other power supply components. The upper chassis then extended over the top of the KT88 output tubes, serving as a heat shield for the cabinet. An anodized aluminum front panel completed the chassis. It included the control panel and front escutcheon and was fastened to the base and upper chassis.

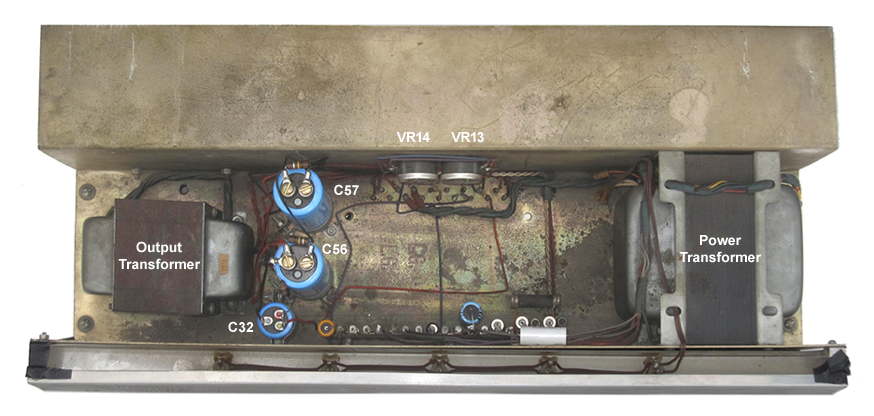

The power and output transformers for the UL460 and UL760 were manufactured for Vox by Drake. The output transformer was rotated 90° to the power transformer to minimize 60 hz hum.

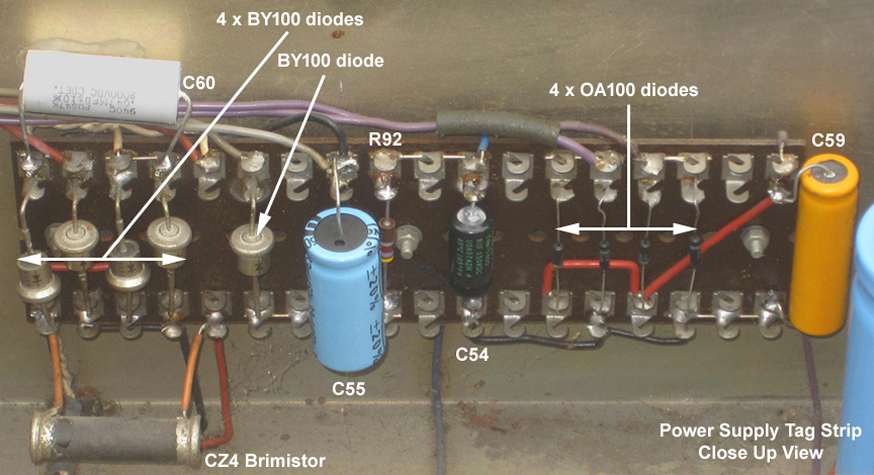

Figure 1 - CZ4 Brimistor

 UL460 Power Supply Components

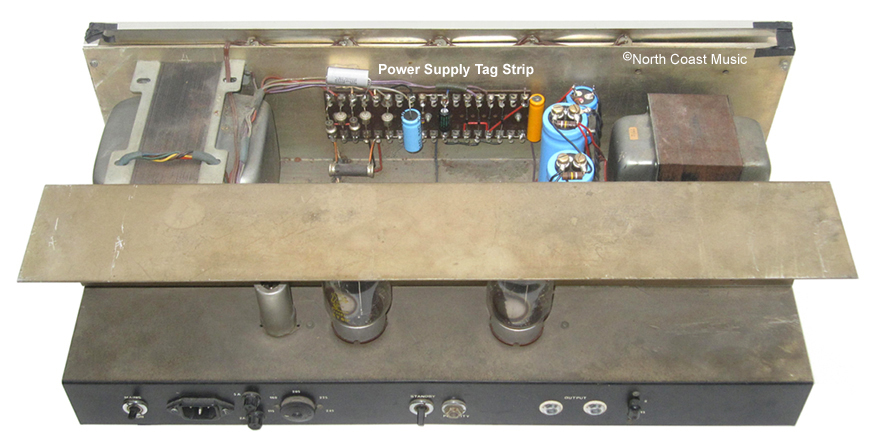

The UL460 power supply included the power transformer, CZ4 brimistor, the power supply tag strip (shown above) and a number of filter capacitors and resistors. These components were all located in the "valley" of the upper chassis.

The "primary" side of the power transformer connected to the wall current. The primary had five input "windings" that allowed the 7120 to operate on 115VAC, 165VAC, 205VAC, 225 VAC or 245VAC mains voltages. The correct mains voltage was manually selected from a five position rear panel rotary switch.

Four "secondary" power transformer windings provided the operating voltages to the 760. The first winding provided the B+ supply to power the tubes. The second winding supplied 6.3 VAC for the tube heaters and lamps. The third winding powered the solid state preamp. The fourth winding provided the screen bias voltage for the output tubes. Let's take a look at the power supply circuitry in detail.

B+ Power Supply
The UL460 B+ power supply started at the HT winding on the power transformer (see Figure 2). The HT winding stepped up the local mains voltage to 450 VAC. A bridge of four BY100 diodes mounted to the power supply tag strip converted the output from the HT winding to pulsed DC (direct current).

Following the diode bridge was a device called a "Brimistor" (see Figure 1)." A Brimistor was a thermally sensitive resistor encased in a heating element. It was designed to guard against a potentially harmful "switch-on" current surge in the amp.

The electrical resistance of the Brimistor was highest when the amp was cold. This allowed the Brimistor to have the greatest effect of limiting "in-rush" current as the amp was first turned on. As the amp warmed, the heating element inside the Brimistor caused the resistance of the thermally sensitive resistor to drop. After 30 seconds, this drop in resistance allowed the Brimistor to pass the full operating B+ voltage to the circuit.

The UL460 power supply also had two 200 uf 350 volt capacitors (C56 and C57). These were wired to each other in series, allowing them to act as a single 100uf primary filter capacitor rated at 700 volts. This combined 700 volt rating was more than adequate to accommodate the ~550VDC from the rectifier bridge.

Each of the 200 uf filter capacitors had a 220k one watt resistor (R100 - R101) straddling their positive and negative terminals. These resistors ensured that the voltage from the UL460 power transformer was shared by both filter caps. They also served as "bleeder" resistors, discharging potentially lethal stored voltage when the amp was off.

AC Filament Heater Supply
A 6.3 VAC winding powered the tube heaters supplied voltage to the power, standby and front panel illumination lamps.

DC Supply for the Solid State Preamp
A 20VAC winding in the secondary of the UL460 power transformer, four OA200 diodes and a 500 uf capacitor created the 25VDC power supply for the solid state preamp circuit.

KT88 Screen Bias Supply
A 107VAC winding in the secondary of the UL460 power supply, a BY100 diode, capacitors C54 and C55 and a 3.3k ohm resistor created the -143VDC screen bias supply. Bias was adjusted by VR13 and VR14, located just behind the tubes.

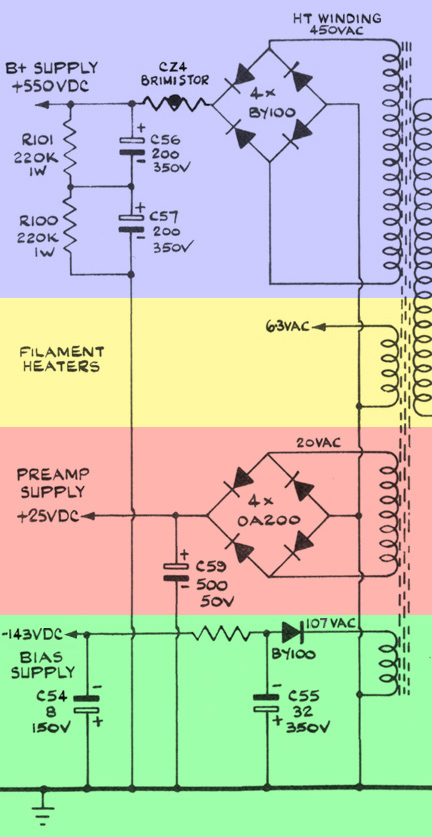

Figure 2 - Condensed Version of the 760 Power Supply Schematic

KT88 Tube
UL460 Power Amp Stage

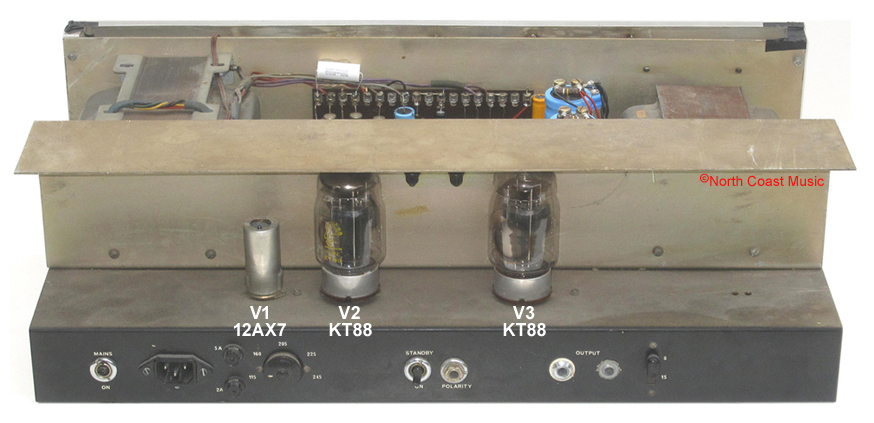

The major components of the UL460 power amplifier stage were V1, a 12AX7 tube, V2-V3, a pair of KT88 power tubes, and the output transformer, labeled "7312."

Introduced in 1956 by the General Electric Company plc (GEC) and noted for its high power, low distortion and wide frequency response, the KT88 tube was favored by many top end manufacturers of hi-fi equipment. McIntosh introduced their legendary MC275 audiophile power amplifier in 1961 with four KT88 tubes in the output section.

The KT88 was initially produced by Marconi Osram Valve, a subsidiary of GEC. The KT88 was similar to the American designed 6550 tube but the KT88 offered lower total harmonic distortion.

While the KT88 could accept plate (anode) voltages up to 800 volts, Vox took a more conservative route for the UL460. The UL460 power supply delivered ~540 VDC at idle to the plates of the KT88 tubes, yielding a clean and distortion free 60 watt RMS output. While sounding great for bass, many felt that the KT88 based power amp in the 460 and 760 was just too clean for guitar.

The bias current for the KT88 tubes was adjusted by two variable resistors (VR13 - VR14).

The UL760 and UL460 utilized a 12AX7 (V1) in the phase inverter circuit.

The UL760 and UL460 employed negative feedback to reduce distortion in the power amp stage. The signal for the negative feedback circuit was provided by the 16 ohm tap of the output transformer. The cathode of the phase inverter tube (V1) reintroduced the negative feedback back into the audio signal.
