Vox BC108, BC112 & BC112-150 "Black Cab" Speaker Cabs - 2017 - 2018


Vox BC108 Enclosure - The Vox BC108 was a compact speaker enclosure loaded with one 8" ceramic magnet Vox speaker of Oriental origin. Constructed of MDF (medium density fiberboard), the BC108 cabinet was covered in smooth black vinyl. The grill was finished in "shadow diamond" grill cloth. The enclosure featured a closed back with twin ¼" input jacks and a handle grip that doubled as a bass port.

Rated at 8 ohms and 25 watts, a single BC108 enclosure was a perfectly matched to the 8 ohm, 25 watt output of an MV50 series amp head. Stacking two BC108 cabinets dropped the total impedance to 4 ohms, allowing an MV50 to produce its maximum power of 50 watts RMS.



Vox BC112 Enclosure - The Vox BC112 was loaded with one 12" Celestion "V Type" ceramic magnet speaker. Constructed of MDF (medium density fiberboard), the BC112 cabinet was covered in smooth black vinyl. The grill panel was finished with "shadow diamond" grill cloth. The open back enclosure had twin ¼" input jacks.

Rated at 70 watts RMS and 8 ohms, a single BC112 enclosure allowed an MV50 amp to produce 25 watts RMS. Stacking two BC112 cabinets dropped the total impedance to 4 ohms, allowing an MV50 to produce its maximum power of 50 watts RMS.

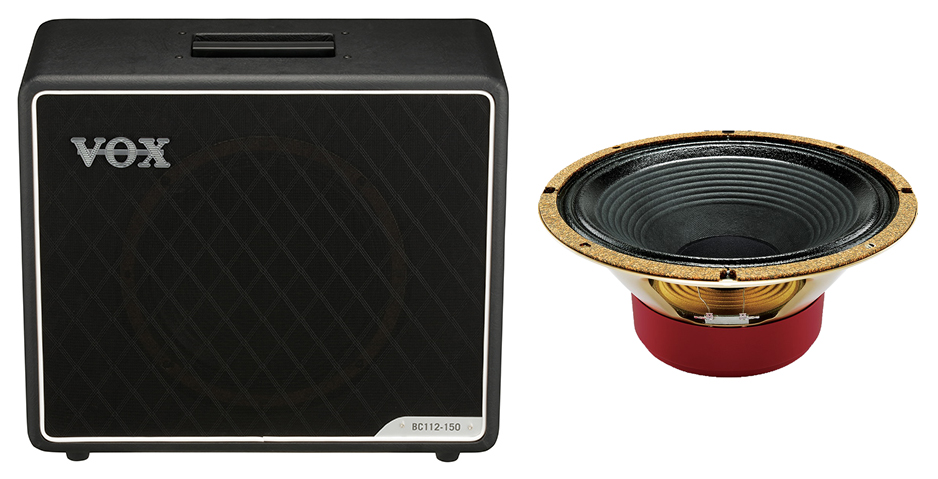

Vox BC112-150 Enclosure - The Vox BC112-150 shared the same cabinet with the BC112. The BC112-150 was designed to be paired with the Vox MVX150 series amplifiers introduced by Vox in 2018. The BC112-150 was equipped with one 8 ohm 12" Celestion Redback speaker rated at 150 watts RMS. Constructed of MDF (medium density fiberboard), the BC112-150 cabinet was covered in smooth black vinyl. The grill was finished with "shadow diamond" grill cloth. The open back enclosure had twin ¼" input jacks.



Vox BC108, BC112 & BC112-150 Cabinets
Speakers: BC108 - 1x8" - 25 watt, 8 ohm
BC112 - 1x12" Celestion V Type, 70 watt, 8 ohm
BC112-150 - 1x12" Celestion Redback, 150 watt, 8 ohm
Dimensions: BC108 - 10.25" x 11" x 7.875"
BC112 - 20.5" x 17.5" x 10.25"
BC112-150 - 20.5" x 17.5" x 10.25"
Weight: BC108 - 8.6 lbs.
BC112 - 30 pounds
BC112-150 - 34 pounds
